VISIOn

Since its birth in Kona in the ‘90s, Vision has been synonymous with a no-expense spared assault on wind resistance. Recent years have seen the innovative application of carbon fiber and the creation of dream-like shapes to enhance performance. Vision is the brand to beat, leading the way in time trials and triathlon by creating slippery-fast aero products with proper fit adjustment that allow the rider to push their limits in race conditions. Vision continually refine, test and innovate in the quest for speed, with industry-leading products throughout the range.

Handlebar

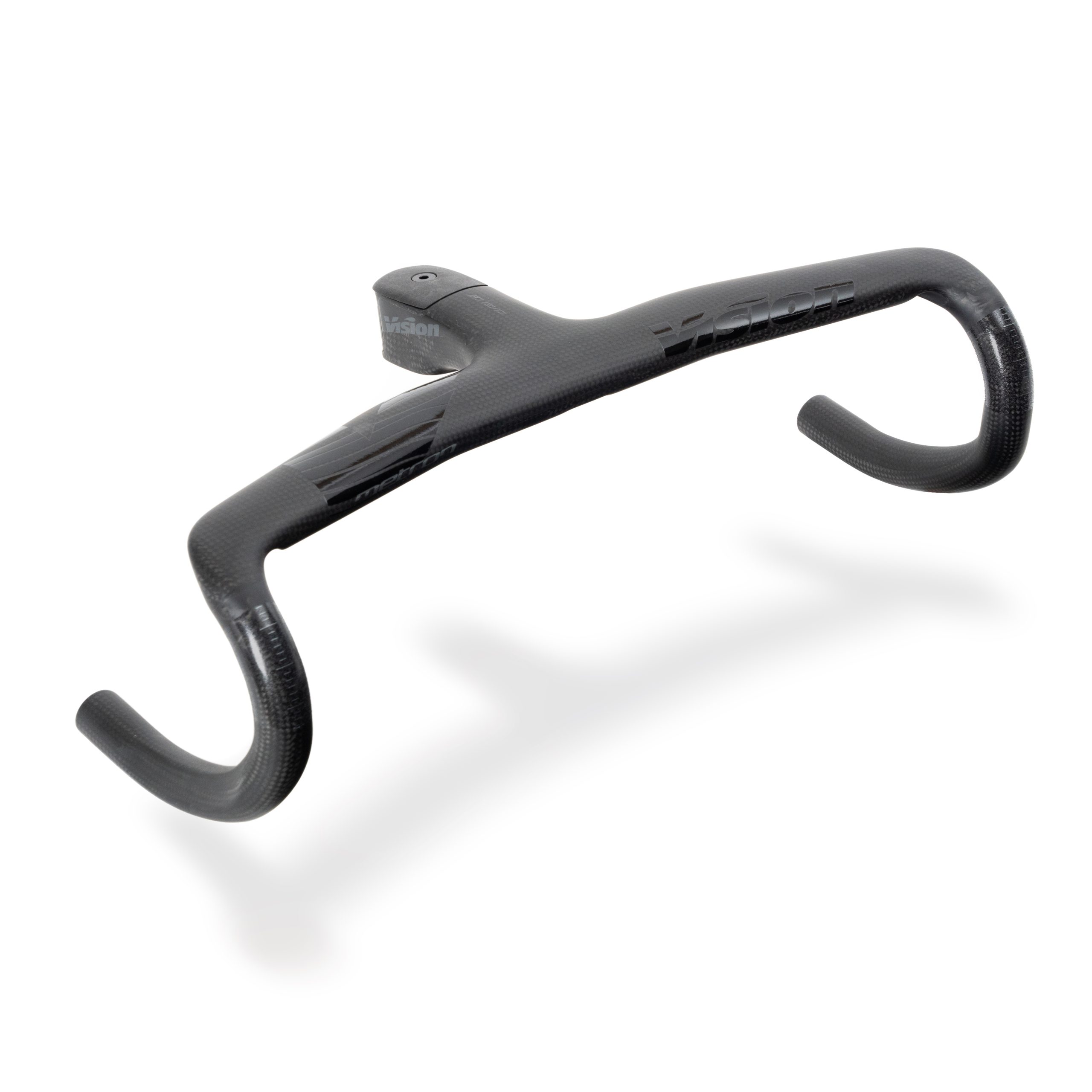

METRON 5D ACR 3K INTEGRATED HANDLEBAR

Metron 5D integrated handlebar, the stiffest and most aero integrated handlebar and stem system. Mixing aerodynamics and ergonomics, the unique shape includes our Aero-Ergo central section. With a slight rise from the stem clamp and a 10 degree forward bend, the 5D accommodates the natural position of your arms for more comfort and easier breathing, while the wing-like shape of the bar top aids aerodynamics. Reinforced carbon fiber construction gives a great strength-to-weight ratio. The 5D features internal cable routing, with guides that accommodate wiring for electronic shifting. Now available with the new ACR System, a fully integrated Aerodynamic Cable Routing solution that routes all cables, wires, and hoses internally. Now available in the new 3K carbon finish.

AERODYNAMICS
Metron 5D integrated handlebar is the stiffest and most aero integrated handlebar and stem system. The wing-like shape of the bar top aids aerodynamics.

ERGONOMICS
The 10 ° angle forward ensures a more natural position of the wrists and a wider position of the elbows, which facilitates breathing.

REINFORCED
Reinforced carbon fiber construction gives a great strength-to-weight ratio.

FEATURES
Aerodynamic integrated Cable Routing (ACR)
All carbon construction
Carbon 3K finish
Di2 compatible with integrated junction box compartment and wiring conduits
5mm offset drops providing wider, more stable sprinting platform and allowing faster transitions from hoods to drops
Stem angle: -6°

WEIGHT
355 g (L100×W400mm)
363 g (L110×W420mm)
368 g (L120×W420mm)
380 g (L130×W440mm)

Wheels

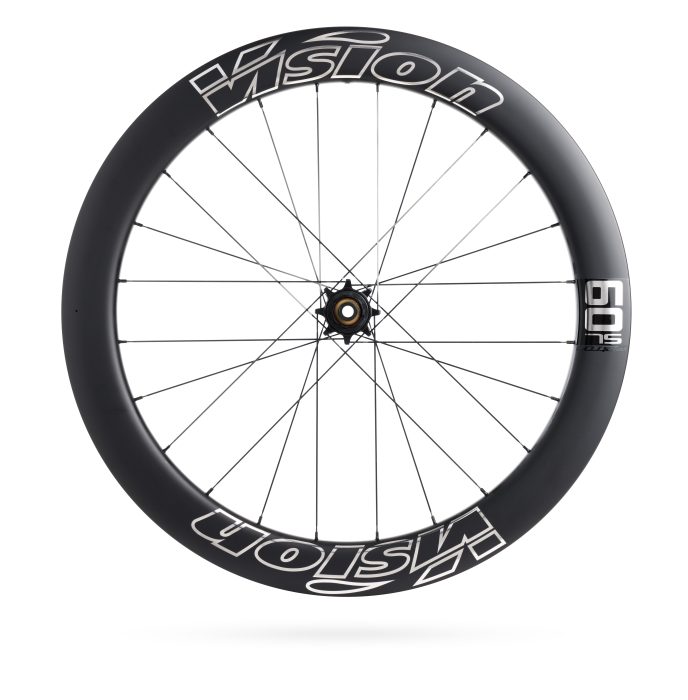

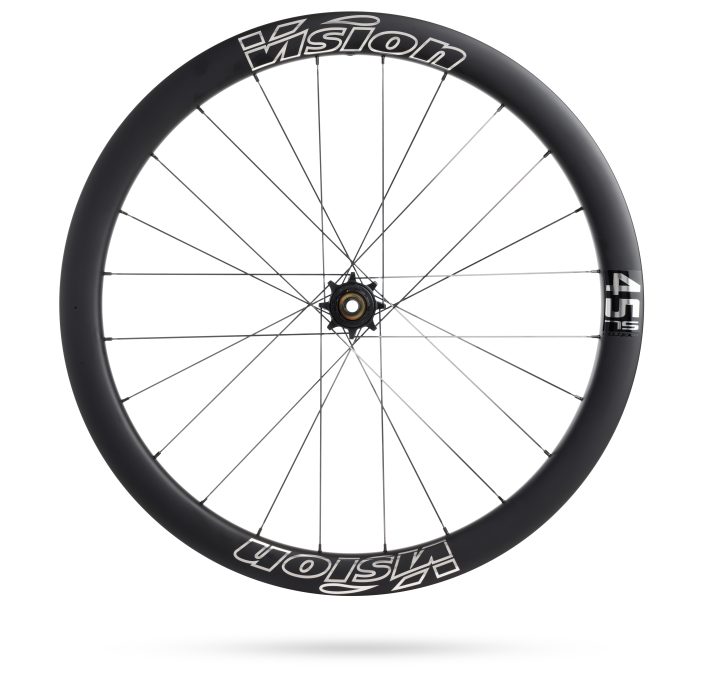

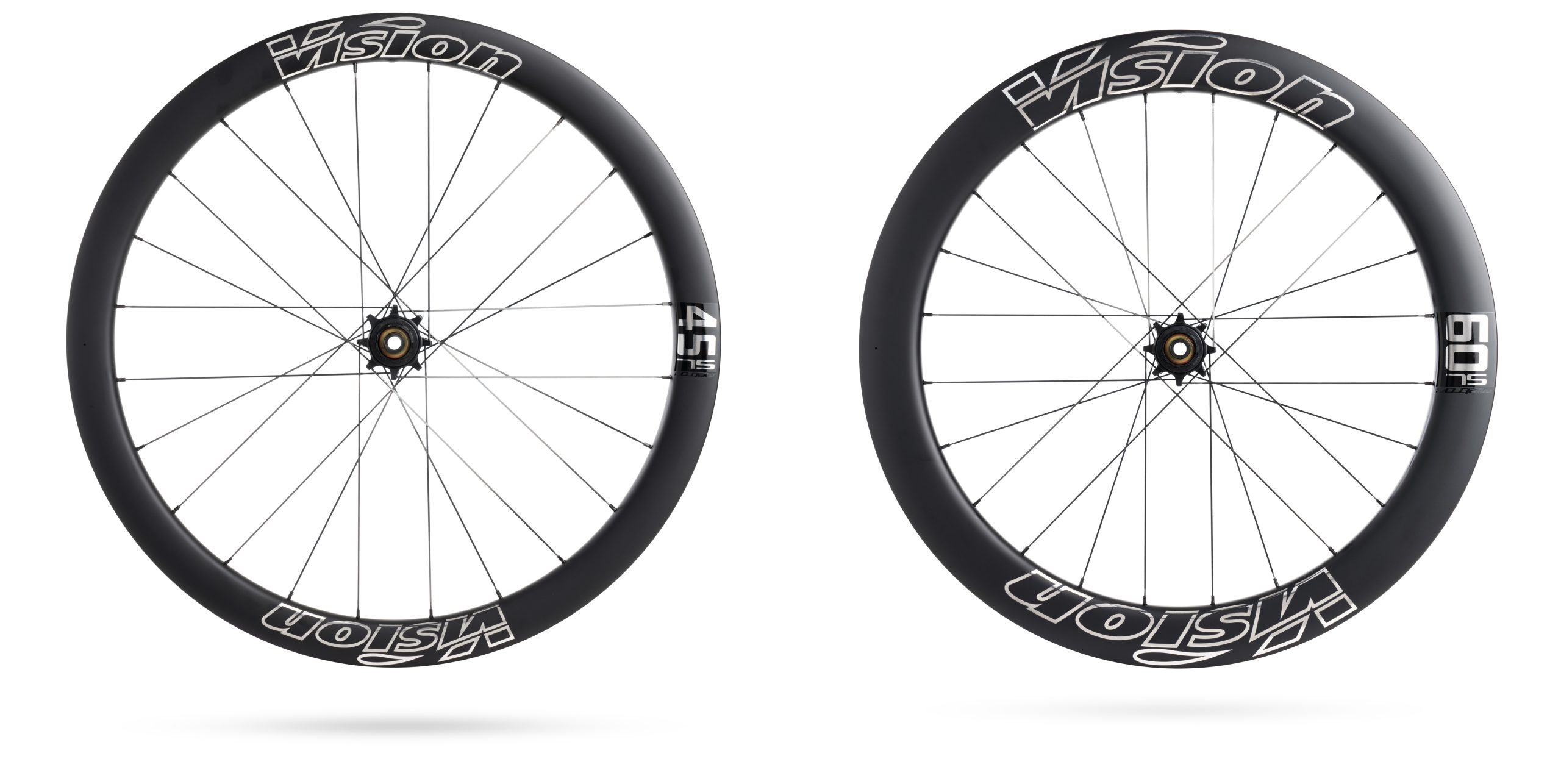

METRON 45 & 60 SL DISC WHEELS

The concept behind this project has been focused primarily on the aerodynamics. Vision engineer’s goal was to create the most aerodynamic and performance enhanced wheels in the world.

They are disc brake compatible in both clincher / tubeless ready and tubular versions. The

Metron 45 SL Disc (45mm rim width) are designed to tackle mainly hilly and mixed stages, while the Metron 60 SL Disc (60mm rim width) are designed for the flat stages.

The internal channel of the CH / TLR version is 21mm, with an external shape that is optimized for a 28mm tire. This allows a sort of “compact and unique structure” between the rim and the tire, thus improving aerodynamics. The rim is handmade with close attention paid to the overall look thanks to the super accurate lamination of the carbon that allows people to see the carbon. To achieve the ultimate goal of stiffness and minimal weight, we also inserted space-derived foam between the carbon layers.

The hubs feature the new Vision PRS technology, with a 72-tooth engagement system. This provides greater smoothness and a better grip gear angle. They are designed for the Centerlock system, while an adapter for 6-Bolt configuration will be available. They are available for SH11 (and 12) and XDR.

The spokes are top of the range aero-bladed, double-butted in stainless steel, so therefore are rust-proof. Both the spokes and nipples are made in Italy, produced by a famous company that supplies parts for the automotive industry.

These wheels officially debuted at 2021 Tour de France with Team Bahrain-Victorious.

Wheels

VISION METRON TFW WHEEL – THE FASTEST WHEEL

For the ultimate aerodynamic efficiency, a disc wheel is unbeatable. The Metron TFW uses monocoque ultra performing 3K carbon fiber construction for great stiffness and low weight. With aero performance optimised, ceramic bearings minimise mechanical losses. The handcrafted TFW is all about going fast, and it’s unique using an ultra-light paint that improves aerodynamics and keeps the overall weight down to only 945g (in Tubular version).
